Vehicle Routing Problem with Time Windows (VRPTW)¶
This notebook demonstrates how to model the Vehicle Routing Problem with Time Windows (VRPTW) using pycsp3-scheduling.
Problem Description¶
In the VRPTW:
A fleet of vehicles starts and ends at a depot
Each vehicle must visit a subset of customers
Each customer has a time window \([e_i, l_i]\) for when service can begin
Each customer has a demand and each vehicle has capacity
Objective: Minimize total travel distance
Mathematical Model¶
Sets:
\(V\) = set of vehicles
\(C\) = set of customers
\(N = C \cup \{0\}\) = customers plus depot (node 0)
Parameters:
\(e_i, l_i\) = earliest/latest start time for customer \(i\)
\(s_i\) = service duration at customer \(i\)
\(d_i\) = demand of customer \(i\)
\(Q\) = vehicle capacity
\(t_{ij}\) = travel time/distance from \(i\) to \(j\)
Variables:
\(visit_{v,i}\) = interval for vehicle \(v\) visiting customer \(i\) (optional)
\(route_v\) = sequence of visits for vehicle \(v\)
Constraints:
Time windows: Service must start within \([e_i, l_i]\)
Coverage: Each customer visited by exactly one vehicle
Capacity: Total demand on each route \(\leq Q\)
Travel time: Sufficient time between consecutive visits
Objective: Minimize total travel distance $\(\min \sum_{v \in V} \left( t_{0,first(v)} + \sum_{i,j \text{ consecutive in } route_v} t_{ij} + t_{last(v),0} \right)\)$
# Imports
from pycsp3 import *
from pycsp3_scheduling import *
from pycsp3_scheduling.variables.interval import clear_interval_registry
from pycsp3_scheduling.expressions.element import ElementMatrix
print("Imports successful!")
Imports successful!
Problem Data¶
A small instance with 6 customers and 3 vehicles:
# Problem data
n_vehicles = 3
n_customers = 6
vehicle_capacity = 15
# Customer data: (earliest, latest, service_time, demand)
# Index 0 is depot, 1-6 are customers
customers = [
(0, 100, 0, 0), # Depot: available [0,100], no service time, no demand
(10, 80, 5, 3), # Customer 1
(20, 80, 8, 5), # Customer 2
(15, 45, 6, 4), # Customer 3
(15, 30, 4, 6), # Customer 4
(25, 50, 7, 3), # Customer 5
(40, 80, 5, 4), # Customer 6
]
# Travel times matrix (symmetric)
# travel[i][j] = time to go from i to j
travel = [
[0, 10, 15, 12, 20, 18, 25], # From depot
[10, 0, 8, 10, 15, 12, 20], # From customer 1
[15, 8, 0, 6, 10, 8, 15], # From customer 2
[12, 10, 6, 0, 12, 10, 18], # From customer 3
[20, 15, 10, 12, 0, 6, 10], # From customer 4
[18, 12, 8, 10, 6, 0, 8], # From customer 5
[25, 20, 15, 18, 10, 8, 0], # From customer 6
]
print("VRPTW Instance:")
print(f" Vehicles: {n_vehicles} (capacity: {vehicle_capacity})")
print(f" Customers: {n_customers}")
print()
print("Customer data:")
print(f" {'ID':<4} {'Window':<12} {'Service':<8} {'Demand':<6}")
for i, (e, l, s, d) in enumerate(customers):
if i == 0:
print(f" {i:<4} [{e:>3}, {l:>3}] {'depot':<8} {'-':<6}")
else:
print(f" {i:<4} [{e:>3}, {l:>3}] {s:<8} {d:<6}")
VRPTW Instance:
Vehicles: 3 (capacity: 15)
Customers: 6
Customer data:
ID Window Service Demand
0 [ 0, 100] depot -
1 [ 10, 80] 5 3
2 [ 20, 80] 8 5
3 [ 15, 45] 6 4
4 [ 15, 30] 4 6
5 [ 25, 50] 7 3
6 [ 40, 80] 5 4
Building the Model¶
We model each customer visit as an optional interval. Each customer must be visited by exactly one vehicle.
# Clear any previous model state
clear()
clear_interval_registry()
# Create a depot interval per vehicle (fictive visit fixed at time 0)
depots = []
# Create visit intervals for each (vehicle, customer) pair
# visits[v][c] = interval for vehicle v visiting customer c
visits = []
for v in range(n_vehicles):
depot = IntervalVar(
start=0,
size=0,
name=f"V{v}_Depot"
)
depots.append(depot)
vehicle_visits = []
for c in range(1, n_customers + 1): # Skip depot (index 0)
earliest, latest, service, demand = customers[c]
visit = IntervalVar(
start=(earliest, latest), # Time window constraint built into bounds
size=service,
optional=True,
name=f"V{v}_C{c}"
)
vehicle_visits.append(visit)
visits.append(vehicle_visits)
print(f"Created {n_vehicles} depot intervals fixed at time 0")
print(f"Created {n_vehicles * n_customers} optional visit intervals")
print(f" visits[vehicle][customer-1] for customer 1..{n_customers}")
Created 3 depot intervals fixed at time 0
Created 18 optional visit intervals
visits[vehicle][customer-1] for customer 1..6
# Create main (abstract) visit interval for each customer
# This represents "customer c is visited" regardless of which vehicle
main_visits = []
for c in range(1, n_customers + 1):
earliest, latest, service, demand = customers[c]
main = IntervalVar(
start=(earliest, latest),
size=service,
name=f"C{c}"
)
main_visits.append(main)
print(f"Created {n_customers} main visit intervals")
Created 6 main visit intervals
# Alternative constraint: each customer visited by exactly one vehicle
# Only for customer visits (indices 0..n_customers-1), not depot
for c in range(n_customers):
alternatives_for_c = [visits[v][c] for v in range(n_vehicles)]
satisfy(alternative(main_visits[c], alternatives_for_c))
print("Alternative constraints: each customer assigned to exactly one vehicle")
Alternative constraints: each customer assigned to exactly one vehicle
# Create sequence variable for each vehicle route
# The sequence determines the order of visits (depot + customers)
routes = []
for v in range(n_vehicles):
# Types align with travel matrix indices: 0=depot, 1..n_customers=customers
types = [0] + [c + 1 for c in range(n_customers)]
route = SequenceVar(
intervals=[depots[v]] + visits[v],
types=types,
name=f"route_{v}"
)
routes.append(route)
print(f"Created {n_vehicles} route sequences")
Created 3 route sequences
# Build transition matrix for travel times (includes depot as type 0)
# transition[i][j] = travel time from type i to type j
transition_matrix = [row[:] for row in travel]
# No-overlap with travel times on each route
for v in range(n_vehicles):
satisfy(SeqNoOverlap(routes[v], transition_matrix=transition_matrix))
print("Travel time constraints added via SeqNoOverlap with transition matrix")
print(f" Example: C2 -> C3 requires {travel[2][3]} time units")
Travel time constraints added via SeqNoOverlap with transition matrix
Example: C2 -> C3 requires 6 time units
# Capacity constraint: total demand on each route <= capacity
# Only sum over customer visits (indices 0..n_customers-1), not depot
for v in range(n_vehicles):
route_demand = Sum(
customers[c+1][3] * presence_time(visits[v][c]) # demand * presence
for c in range(n_customers) # Customer indices only
)
satisfy(route_demand <= vehicle_capacity)
print(f"Capacity constraints: each route demand <= {vehicle_capacity}")
Capacity constraints: each route demand <= 15
# =============================================================================
# Objective: Minimize total travel distance using type_of_next pattern
# =============================================================================
# This is the CP Optimizer-style objective using ElementMatrix and type_of_next.
#
# Matrix structure:
# M[type_i, type_j] = distance from type_i to type_j (type 0 is depot)
# M[type_i, last_type] = distance from type_i back to depot
# M[type_i, absent_type] = 0 (no cost if interval is absent)
#
# For each vehicle route and each interval:
# cost += M[type_i, type_of_next(route, interval, last_value, absent_value)]
# Build the transition cost matrix (includes depot as type 0)
cost_matrix = [row[:] for row in travel]
# Distance back to depot for each type (when interval is last)
# Row 0 (depot) has 0 cost when no customer is visited
depot_distances = [0] + [travel[i][0] for i in range(1, n_customers + 1)]
# Create ElementMatrix with special values for boundary cases
M = ElementMatrix(
matrix=cost_matrix,
last_value=depot_distances, # Return to depot when last in route
absent_value=0, # No cost if interval not scheduled
)
print(f"\nDistance objective using type_of_next pattern:")
print(f" Matrix size: {M.n_rows}x{M.n_cols} (+ last_type={M.last_type}, absent_type={M.absent_type})")
print(f" Example: Depot->C1 = {M.get_value(0, 1)}, C2->depot = {M.get_value(2, M.last_type)}")
# Build objective: sum of M[type_i, type_of_next(route, interval)]
distance_terms = []
for v in range(n_vehicles):
depot_next = type_of_next(
routes[v],
depots[v],
last_value=M.last_type, # Use matrix's last column index
absent_value=M.absent_type, # Use matrix's absent column index
)
distance_terms.append(M[0, depot_next])
for c in range(n_customers):
type_i = c + 1 # Type of this interval (1-indexed customer)
next_type = type_of_next(
routes[v],
visits[v][c],
last_value=M.last_type, # Use matrix's last column index
absent_value=M.absent_type, # Use matrix's absent column index
)
# M[type_i, next_type] gives the transition cost
distance_terms.append(M[type_i, next_type])
# Note: This objective covers depot departure, customer-to-customer,
# and return-to-depot distances.
minimize(Sum(distance_terms))
Distance objective using type_of_next pattern:
Matrix size: 7x7 (+ last_type=7, absent_type=8)
Example: Depot->C1 = 10, C2->depot = 15
<pycsp3.classes.entities.EObjective at 0x12223a240>
Solving¶
# Solve
result = solve()
if result in (SAT, OPTIMUM):
print("=" * 60)
print("Solution found!" + (" (Optimal)" if result == OPTIMUM else ""))
print("=" * 60)
total_distance = 0
# Extract routes
for v in range(n_vehicles):
route_visits = []
route_demand = 0
# Check customer visits only (not depot)
for c in range(n_customers):
val = interval_value(visits[v][c])
if val is not None: # This visit is selected
customer_id = c + 1
route_visits.append((val.start, customer_id, val.end))
route_demand += customers[customer_id][3]
route_visits.sort() # Sort by start time
if route_visits:
route_str = " -> ".join(f"C{c}[{s},{e}]" for s, c, e in route_visits)
# Calculate route distance (depot -> customers -> depot)
route_distance = travel[0][route_visits[0][1]] # Depot to first
for i in range(len(route_visits) - 1):
from_cust = route_visits[i][1]
to_cust = route_visits[i+1][1]
route_distance += travel[from_cust][to_cust]
route_distance += travel[route_visits[-1][1]][0] # Last to depot
total_distance += route_distance
print(f"Vehicle {v}: 0 -> {route_str} -> 0")
print(f" demand: {route_demand}/{vehicle_capacity}, distance: {route_distance}")
else:
print(f"Vehicle {v}: unused")
print(f"\nTotal travel distance: {total_distance}")
else:
print("No solution found")
============================================================
Solution found! (Optimal)
============================================================
Vehicle 0: 0 -> C1[10,15] -> C2[23,31] -> C3[37,43] -> 0
demand: 12/15, distance: 36
Vehicle 1: unused
Vehicle 2: 0 -> C4[30,34] -> C5[40,47] -> C6[55,60] -> 0
demand: 13/15, distance: 59
Total travel distance: 95
Visualization¶

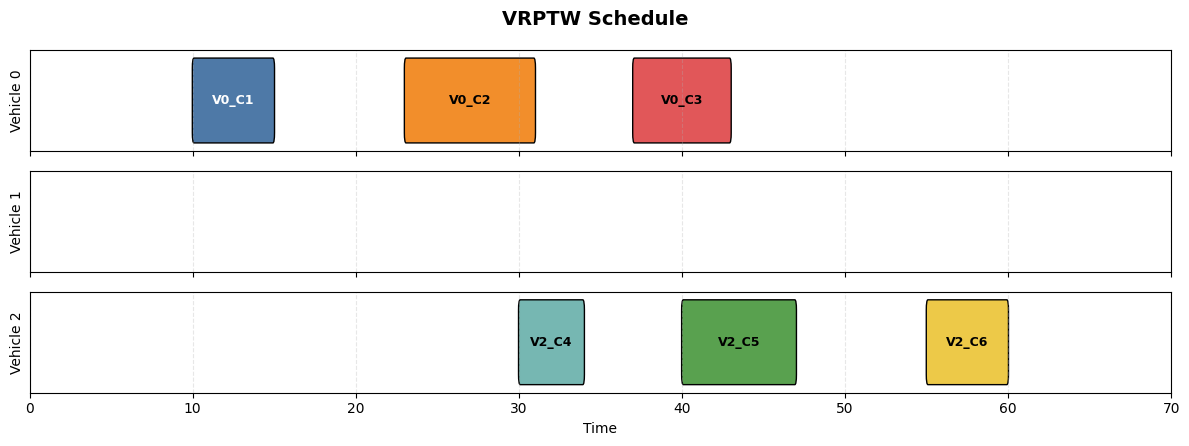

Gantt chart showing each vehicle’s route over time:
if result in (SAT, OPTIMUM):
visu.reset()
makespan = max(interval_value(main_visits[c]).end for c in range(n_customers))
visu.timeline("VRPTW Schedule", origin=0, horizon=makespan + 10)
# One panel per vehicle
for v in range(n_vehicles):
visu.panel(f"Vehicle {v}")
# Only show customer visits, not depot
for c in range(n_customers):
val = interval_value(visits[v][c])
if val is not None:
visu.interval(val, color=c + 1)
if visu.is_visu_enabled():
visu.show()
else:
print("Visualization disabled (matplotlib not available)")
Extensions¶
Heterogeneous Fleet¶
Different vehicles with different capacities:
# Example: Heterogeneous fleet
vehicle_capacities = [20, 15, 10] # Different capacities
print("For heterogeneous fleet:")
print(" - Use vehicle-specific capacity in constraints")
print(" - Can also have vehicle-specific costs")
print(f" - Example capacities: {vehicle_capacities}")
For heterogeneous fleet:
- Use vehicle-specific capacity in constraints
- Can also have vehicle-specific costs
- Example capacities: [20, 15, 10]
Visit Synchronization¶
In many routing applications, some visits must be coordinated:
Pickup-Delivery: Pickup must occur before delivery
Synchronized Services: Multiple visits at the same time (e.g., team service)
Precedence: One customer must be visited before another
# Example: Visit synchronization constraints
# (not applied to model above - showing patterns)
print("=== Visit Synchronization Patterns ===")
print()
# Pattern 1: Pickup-Delivery precedence
# Customer 1 (pickup) must be visited before Customer 4 (delivery)
print("1. Pickup-Delivery (precedence):")
print(" # Pickup at C1 must finish before delivery at C4 starts")
print(" satisfy(end_before_start(main_visits[0], main_visits[3]))")
print()
# Pattern 2: Same-time visits (synchronized service)
# Customer 2 and Customer 3 must be served at the same time (team service)
print("2. Synchronized visits (same start time):")
print(" # C2 and C3 must start at the same time")
print(" from pycsp3_scheduling import start_at_start")
print(" satisfy(start_at_start(main_visits[1], main_visits[2]))")
print()
# Pattern 3: Time-lagged visits
# Customer 5 must start exactly 10 time units after Customer 2 ends
print("3. Time-lagged visits:")
print(" # C5 starts 10 time units after C2 ends")
print(" from pycsp3_scheduling import end_before_start")
print(" satisfy(end_before_start(main_visits[1], main_visits[4], delay=10))")
print()
# Pattern 4: Same vehicle constraint
# Customer 1 and Customer 4 must be on the same vehicle (pickup-delivery pair)
print("4. Same vehicle (pickup-delivery on same route):")
print(" # C1 and C4 must be on the same vehicle")
print(" for v in range(n_vehicles):")
print(" # If C1 is on vehicle v, then C4 must also be on vehicle v")
print(" satisfy(presence_of(visits[v][0]) == presence_of(visits[v][3]))")
print()
# Pattern 5: Synchronize constraint (same time and same vehicle)
print("5. Synchronize (intervals share same start time):")
print(" # All visits in a group start at the same time as a reference interval")
print(" satisfy(synchronize(reference_interval, [sync_visit1, sync_visit2]))")
=== Visit Synchronization Patterns ===
1. Pickup-Delivery (precedence):
# Pickup at C1 must finish before delivery at C4 starts
satisfy(end_before_start(main_visits[0], main_visits[3]))
2. Synchronized visits (same start time):
# C2 and C3 must start at the same time
from pycsp3_scheduling import start_at_start
satisfy(start_at_start(main_visits[1], main_visits[2]))
3. Time-lagged visits:
# C5 starts 10 time units after C2 ends
from pycsp3_scheduling import end_before_start
satisfy(end_before_start(main_visits[1], main_visits[4], delay=10))
4. Same vehicle (pickup-delivery on same route):
# C1 and C4 must be on the same vehicle
for v in range(n_vehicles):
# If C1 is on vehicle v, then C4 must also be on vehicle v
satisfy(presence_of(visits[v][0]) == presence_of(visits[v][3]))
5. Synchronize (intervals share same start time):
# All visits in a group start at the same time as a reference interval
satisfy(synchronize(reference_interval, [sync_visit1, sync_visit2]))
Summary¶
This notebook demonstrated VRPTW modeling with:
Optional intervals for vehicle-customer assignments
Alternative constraints for customer coverage
Sequence variables with transition matrices for travel times
Capacity constraints using
presence_time()ElementMatrix + type_of_next for travel distance objective
Visit synchronization patterns (precedence, same-time, time-lagged)
Key Modeling Pattern¶
# For each customer, one visit per vehicle (optional)
visits[v][c] = IntervalVar(start=(earliest, latest), size=service, optional=True)
# Main visit (abstract) for the customer
main_visit[c] = IntervalVar(start=(earliest, latest), size=service)
# Exactly one vehicle visits each customer
satisfy(alternative(main_visit[c], [visits[v][c] for v in vehicles]))
# Include a depot interval per vehicle (fixed at time 0)
depot[v] = IntervalVar(start=0, size=0)
route[v] = SequenceVar(intervals=[depot[v]] + visits[v], types=[0] + [c + 1 for c in customers])
# Travel times between nodes (including depot) on each route
satisfy(SeqNoOverlap(route[v], transition_matrix=travel_times))
# Distance objective using type_of_next (includes depot departure)
M = ElementMatrix(matrix=costs, last_value=depot_costs, absent_value=0)
depot_next = type_of_next(route[v], depot[v], M.last_type, M.absent_type)
distance_terms.append(M[0, depot_next])
distance_terms.append(M[type_i, type_of_next(route, interval, M.last_type, M.absent_type)])
minimize(Sum(distance_terms))
Objective Options¶
Objective |
Approach |
Notes |
|---|---|---|
Min makespan |
|
Latest completion |
Min total time |
|
Proxy for travel |
Min vehicles |
|
Count active routes |
Min travel |
|
Exact distance |
Synchronization Patterns¶
Pattern |
Constraint |
Use Case |
|---|---|---|
Precedence |
|
Pickup before delivery |
Same time |
|
Team service |
Time lag |
|
Minimum separation |
Same vehicle |
|
Pickup-delivery pairs |
Synchronize |
|
Coordinated visits |
