Flexible Job Shop Scheduling¶
This notebook demonstrates how to model a Flexible Job Shop Scheduling Problem (FJSP).
Problem Description¶
The Flexible Job Shop extends the classical Job Shop:
Each operation can be processed on multiple alternative machines
Different machines may have different processing times for the same operation
Objective: Select machines and schedule operations to minimize makespan
Mathematical Model¶
Sets:
\(J\) = set of jobs
\(M\) = set of machines
\(O_j\) = ordered operations of job \(j\)
\(M_{jo}\) = set of machines capable of processing operation \(o\) of job \(j\)
Parameters:
\(p_{jom}\) = processing time of operation \(o\) of job \(j\) on machine \(m\)
Variables:
\(s_{jo}\) = start time of operation \(o\) of job \(j\)
\(x_{jom}\) = 1 if operation \(o\) of job \(j\) is assigned to machine \(m\)
Constraints:
Assignment: Each operation assigned to exactly one capable machine
Precedence: Operations in a job processed in order
No-overlap: Operations on same machine don’t overlap
# Imports
from pycsp3 import satisfy, minimize, solve, SAT, OPTIMUM, Maximum, clear
from pycsp3_scheduling import (
IntervalVar, SequenceVar, SeqNoOverlap,
alternative, end_before_start, end_time, interval_value,
visu
)
from pycsp3_scheduling.variables.interval import clear_interval_registry
print("Imports successful!")
Imports successful!
Problem Data¶
Each operation can be processed on multiple machines with different durations:
# Problem data
# processing_times[job][operation] = {machine: duration}
processing_times = [
# Job 0
[{0: 3, 1: 2}, {1: 4, 2: 3}, {0: 2, 2: 4}],
# Job 1
[{0: 2, 2: 5}, {1: 3}, {0: 4, 1: 3, 2: 2}],
# Job 2
[{1: 3, 2: 2}, {0: 4, 1: 2}, {2: 3}],
]
n_jobs = len(processing_times)
n_machines = 3
print("Problem Instance:")
print(f" Jobs: {n_jobs}")
print(f" Machines: {n_machines}")
print()
for j, job in enumerate(processing_times):
print(f"Job {j}:")
for o, machines_dict in enumerate(job):
opts = ", ".join(f"M{m}({d})" for m, d in machines_dict.items())
print(f" Op {o}: {opts}")
Problem Instance:
Jobs: 3
Machines: 3
Job 0:
Op 0: M0(3), M1(2)
Op 1: M1(4), M2(3)
Op 2: M0(2), M2(4)
Job 1:
Op 0: M0(2), M2(5)
Op 1: M1(3)
Op 2: M0(4), M1(3), M2(2)
Job 2:
Op 0: M1(3), M2(2)
Op 1: M0(4), M1(2)
Op 2: M2(3)
Building the Model¶
# Clear any previous model state
clear()
clear_interval_registry()
# Create main interval for each operation (machine not yet decided)
ops = []
for j, job in enumerate(processing_times):
job_ops = []
for o, machines_dict in enumerate(job):
# Duration range from min to max across machines
min_dur = min(machines_dict.values())
max_dur = max(machines_dict.values())
op = IntervalVar(size=(min_dur, max_dur), name=f"J{j}_O{o}")
job_ops.append(op)
ops.append(job_ops)
print("Main operation intervals (variable duration):")
for j, job_ops in enumerate(ops):
for o, op in enumerate(job_ops):
print(f" {op.name}: size=[{op.size_min}, {op.size_max}]")
Main operation intervals (variable duration):
J0_O0: size=[2, 3]
J0_O1: size=[3, 4]
J0_O2: size=[2, 4]
J1_O0: size=[2, 5]
J1_O1: size=[3, 3]
J1_O2: size=[2, 4]
J2_O0: size=[2, 3]
J2_O1: size=[2, 4]
J2_O2: size=[3, 3]
# Create optional alternatives for each (operation, machine) pair
alternatives = [] # alternatives[j][o] = list of (machine, interval) pairs
machine_ops = [[] for _ in range(n_machines)] # Operations assigned to each machine
for j, job in enumerate(processing_times):
job_alts = []
for o, machines_dict in enumerate(job):
op_alts = []
for m, duration in machines_dict.items():
alt = IntervalVar(
size=duration,
optional=True,
name=f"J{j}_O{o}_M{m}"
)
op_alts.append((m, alt))
machine_ops[m].append(alt)
job_alts.append(op_alts)
alternatives.append(job_alts)
print("Alternative intervals (optional):")
for j in range(n_jobs):
for o in range(len(alternatives[j])):
alts = [f"{alt.name}" for _, alt in alternatives[j][o]]
print(f" {ops[j][o].name} -> [{', '.join(alts)}]")
Alternative intervals (optional):
J0_O0 -> [J0_O0_M0, J0_O0_M1]
J0_O1 -> [J0_O1_M1, J0_O1_M2]
J0_O2 -> [J0_O2_M0, J0_O2_M2]
J1_O0 -> [J1_O0_M0, J1_O0_M2]
J1_O1 -> [J1_O1_M1]
J1_O2 -> [J1_O2_M0, J1_O2_M1, J1_O2_M2]
J2_O0 -> [J2_O0_M1, J2_O0_M2]
J2_O1 -> [J2_O1_M0, J2_O1_M1]
J2_O2 -> [J2_O2_M2]
# Alternative constraints: select exactly one machine per operation
for j in range(n_jobs):
for o in range(len(ops[j])):
alt_intervals = [alt for _, alt in alternatives[j][o]]
satisfy(alternative(ops[j][o], alt_intervals))
print("Alternative constraints added (select exactly one machine per operation)")
# Precedence within jobs
for j in range(n_jobs):
for o in range(len(ops[j]) - 1):
satisfy(end_before_start(ops[j][o], ops[j][o+1]))
print("Precedence constraints added")
# No-overlap on each machine
for m in range(n_machines):
if machine_ops[m]:
satisfy(SeqNoOverlap(machine_ops[m]))
print("No-overlap constraints added for each machine")
Alternative constraints added (select exactly one machine per operation)
Precedence constraints added
No-overlap constraints added for each machine
# Minimize makespan
last_ops = [ops[j][-1] for j in range(n_jobs)]
minimize(Maximum(end_time(op) for op in last_ops))
print("Objective: Minimize makespan")
Objective: Minimize makespan
Solving¶
# Solve
result = solve()
if result in (SAT, OPTIMUM):
print("Solution found!" + (" (Optimal)" if result == OPTIMUM else ""))
print()
for j in range(n_jobs):
print(f"Job {j}:")
for o in range(len(ops[j])):
val = interval_value(ops[j][o])
# Find which machine was selected
selected_machine = None
for m, alt in alternatives[j][o]:
alt_result = interval_value(alt)
if alt_result is not None:
selected_machine = m
break
print(f" Op {o}: Machine {selected_machine}, [{val.start}, {val.end}]")
makespan = max(interval_value(ops[j][-1]).end for j in range(n_jobs))
print(f"\nMakespan: {makespan}")
else:
print("No solution found")
Solution found! (Optimal)
Job 0:
Op 0: Machine 1, [0, 2]
Op 1: Machine 2, [2, 5]
Op 2: Machine 0, [6, 8]
Job 1:
Op 0: Machine 0, [0, 2]
Op 1: Machine 1, [2, 5]
Op 2: Machine 1, [5, 8]
Job 2:
Op 0: Machine 2, [0, 2]
Op 1: Machine 0, [2, 6]
Op 2: Machine 2, [6, 9]
Makespan: 9

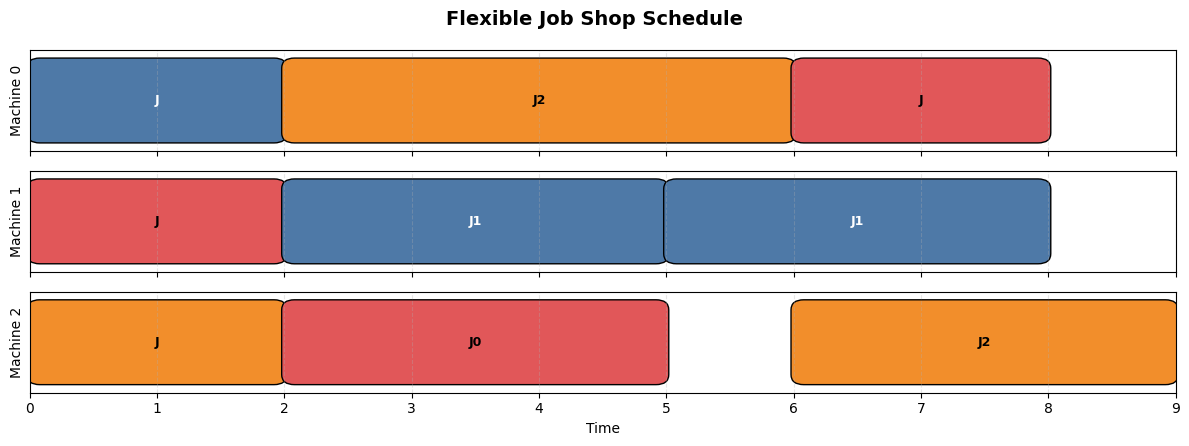

Visualization¶
if result in (SAT, OPTIMUM):
from pycsp3_scheduling.interop import IntervalValue
visu.reset()
makespan = max(interval_value(ops[j][-1]).end for j in range(n_jobs))
visu.timeline("Flexible Job Shop Schedule", origin=0, horizon=makespan)
# Build schedule per machine from selected alternatives
machine_schedule = {m: [] for m in range(n_machines)}
for j in range(n_jobs):
for o in range(len(alternatives[j])):
for m, alt in alternatives[j][o]:
alt_val = interval_value(alt)
if alt_val is not None: # This alternative was selected
machine_schedule[m].append((alt_val.start, alt_val.end, j, o))
# Create panels for each machine
for m in range(n_machines):
visu.panel(f"Machine {m}")
for start, end, j, o in sorted(machine_schedule[m]):
visu.interval(IntervalValue(start=start, length=end-start, name=f"J{j}"), color=j)
if visu.is_visu_enabled():
visu.show()
else:
print("Visualization disabled (matplotlib not available)")
print("\nMachine Schedules:")
for m in range(n_machines):
print(f" Machine {m}: ", end="")
for start, end, j, o in sorted(machine_schedule[m]):
print(f"J{j}O{o}[{start},{end}] ", end="")
print()
Extension: Setup Times¶
When setup times depend on job types:
# Example setup time configuration (not applied to model above)
from pycsp3_scheduling import TransitionMatrix
job_types = [0, 1, 0] # Type of each job
# Setup time matrix: time to switch from type i to type j
setup_matrix = TransitionMatrix([
[0, 5, 3], # From type 0
[4, 0, 2], # From type 1
[3, 4, 0], # From type 2
])
print("To use setup times:")
print(" 1. Create SequenceVar with types for each machine")
print(" 2. Use SeqNoOverlap(seq, transition_matrix=matrix)")
print(f"\nSetup time Type 0 -> Type 1: {setup_matrix[0, 1]}")
To use setup times:
1. Create SequenceVar with types for each machine
2. Use SeqNoOverlap(seq, transition_matrix=matrix)
Setup time Type 0 -> Type 1: 5
Summary¶
This notebook demonstrated:
Flexible assignments using
alternative()constraintOptional intervals for machine choices
Variable duration based on machine selection
Key Modeling Pattern¶
# Main operation (abstract)
op = IntervalVar(size=(min_dur, max_dur), name="op")
# Machine alternatives (optional)
alt_m0 = IntervalVar(size=dur_m0, optional=True, name="op_m0")
alt_m1 = IntervalVar(size=dur_m1, optional=True, name="op_m1")
# Select exactly one
satisfy(alternative(op, [alt_m0, alt_m1]))
