Job Shop Scheduling¶
This notebook demonstrates how to model a Job Shop Scheduling Problem (JSP)
with pycsp3-scheduling.
In a job shop:
Each job is a sequence of operations.
Each operation has a fixed machine and processing time.
Machines can process at most one operation at a time.
We aim to minimize the makespan (completion time of the last job).
Mathematical Model¶
Let \(J\) be jobs and \(M\) machines. Each job \(j\) has operations \(o = 0..O-1\).
Constraints:
Precedence: \(end(j, o) \le start(j, o+1)\)
Machine capacity: operations sharing a machine do not overlap
Objective: \( \min \max_{j \in J} end(j, O-1) \)
# Imports
from pycsp3 import satisfy, minimize, solve, SAT, OPTIMUM, Maximum, clear
from pycsp3_scheduling import (
IntervalVar, SequenceVar, SeqNoOverlap,
end_before_start, end_time, interval_value,
visu
)
from pycsp3_scheduling.variables.interval import clear_interval_registry
print("Imports successful!")
Imports successful!
Problem Data¶
We use a small 3x3 instance (3 jobs, 3 machines). Each job lists
operations as (machine, duration) pairs.
# Problem data: jobs[j] = [(machine, duration), ...]
jobs = [
[(0, 3), (1, 2), (2, 2)],
[(0, 2), (2, 1), (1, 4)],
[(1, 4), (2, 3), (0, 2)],
]
n_jobs = len(jobs)
n_ops = len(jobs[0])
n_machines = 1 + max(m for job in jobs for m, _ in job)
assert all(len(job) == n_ops for job in jobs)
machines = [[m for m, _ in job] for job in jobs]
durations = [[d for _, d in job] for job in jobs]
# Simple upper bound on horizon
horizon = sum(sum(d for _, d in job) for job in jobs)
print(f"Jobs: {n_jobs}, Machines: {n_machines}, Ops/job: {n_ops}")
print(f"Horizon upper bound: {horizon}")
Jobs: 3, Machines: 3, Ops/job: 3
Horizon upper bound: 23
Building the Model¶
# Reset model state
clear()
clear_interval_registry()
# ops[j][o] is the interval for operation o of job j
ops = [
[
IntervalVar(
start=(0, horizon),
end=(0, horizon),
size=durations[j][o],
name=f"J{j}O{o}_M{machines[j][o]}"
)
for o in range(n_ops)
]
for j in range(n_jobs)
]
print("Created interval variables:")
for j in range(n_jobs):
for o in range(n_ops):
print(f" {ops[j][o].name}: machine={machines[j][o]}, size={durations[j][o]}")
Created interval variables:
J0O0_M0: machine=0, size=3
J0O1_M1: machine=1, size=2
J0O2_M2: machine=2, size=2
J1O0_M0: machine=0, size=2
J1O1_M2: machine=2, size=1
J1O2_M1: machine=1, size=4
J2O0_M1: machine=1, size=4
J2O1_M2: machine=2, size=3
J2O2_M0: machine=0, size=2
# Precedence constraints within jobs
satisfy(
end_before_start(ops[j][o], ops[j][o + 1])
for j in range(n_jobs)
for o in range(n_ops - 1)
)
print("Precedence constraints added:")
for j in range(n_jobs):
chain = " -> ".join(ops[j][o].name for o in range(n_ops))
print(f" Job {j}: {chain}")
Precedence constraints added:
Job 0: J0O0_M0 -> J0O1_M1 -> J0O2_M2
Job 1: J1O0_M0 -> J1O1_M2 -> J1O2_M1
Job 2: J2O0_M1 -> J2O1_M2 -> J2O2_M0
# Group operations by machine
machine_ops = [[] for _ in range(n_machines)]
for j in range(n_jobs):
for o in range(n_ops):
machine_ops[machines[j][o]].append(ops[j][o])
# Sequence variables for each machine
sequences = [
SequenceVar(intervals=machine_ops[m], name=f"machine{m}")
for m in range(n_machines)
]
# No-overlap constraints on machines
satisfy(SeqNoOverlap(seq) for seq in sequences)
print("No-overlap constraints added:")
for m, seq in enumerate(sequences):
ops_str = ", ".join(iv.name for iv in seq.intervals)
print(f" Machine {m}: [{ops_str}]")
No-overlap constraints added:
Machine 0: [J0O0_M0, J1O0_M0, J2O2_M0]
Machine 1: [J0O1_M1, J1O2_M1, J2O0_M1]
Machine 2: [J0O2_M2, J1O1_M2, J2O1_M2]
# Minimize makespan
minimize(Maximum(end_time(ops[j][-1]) for j in range(n_jobs)))
print("Objective: Minimize max(end time of last operation per job)")
Objective: Minimize max(end time of last operation per job)
Solving¶
# Solve the problem
result = solve()
if result in (SAT, OPTIMUM):
print("Solution found!" + (" (Optimal)" if result == OPTIMUM else ""))
print()
# Extract and display solution
for j in range(n_jobs):
print(f"Job {j}:")
for o in range(n_ops):
val = interval_value(ops[j][o])
m = machines[j][o]
print(f" Op {o} on M{m}: [{val.start}, {val.end}]")
makespan = max(interval_value(ops[j][-1]).end for j in range(n_jobs))
print(f"Makespan: {makespan}")
else:
print("No solution found")
Solution found! (Optimal)
Job 0:
Op 0 on M0: [0, 3]
Op 1 on M1: [4, 6]
Op 2 on M2: [9, 11]
Job 1:
Op 0 on M0: [3, 5]
Op 1 on M2: [5, 6]
Op 2 on M1: [6, 10]
Job 2:
Op 0 on M1: [0, 4]
Op 1 on M2: [6, 9]
Op 2 on M0: [9, 11]
Makespan: 11
Visualization¶

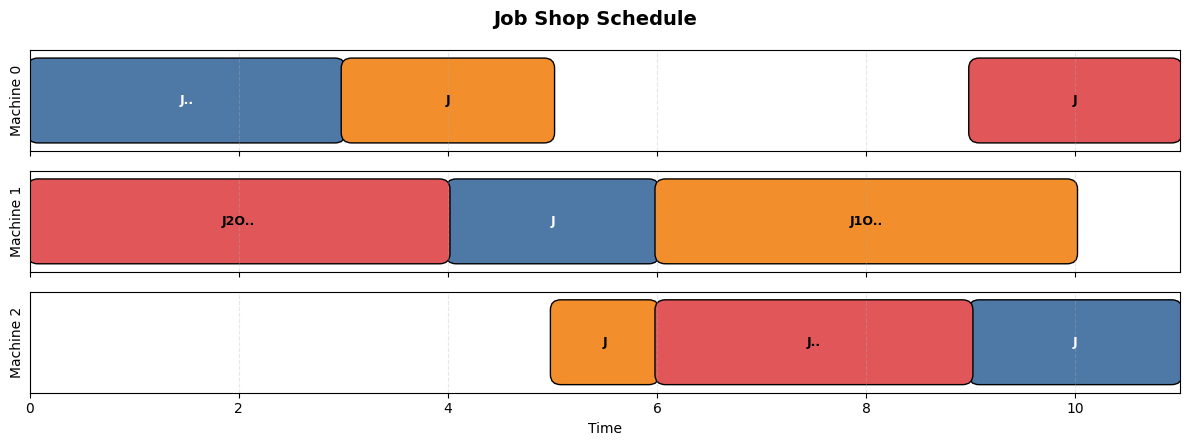

Let’s create a Gantt chart showing the schedule:
if result in (SAT, OPTIMUM):
visu.reset()
makespan = max(interval_value(ops[j][-1]).end for j in range(n_jobs))
visu.timeline("Job Shop Schedule", origin=0, horizon=makespan)
# Create a panel for each machine
for m in range(n_machines):
visu.panel(f"Machine {m}")
# Add all operations assigned to this machine
for j in range(n_jobs):
for o in range(n_ops):
if machines[j][o] == m:
val = interval_value(ops[j][o])
visu.interval(val, color=j)
# Show the visualization (requires matplotlib)
if visu.is_visu_enabled():
visu.show()
else:
print("Visualization disabled (matplotlib not available)")
print("\nSchedule summary:")
for m in range(n_machines):
print(f"Machine {m}: ", end="")
schedule = []
for j in range(n_jobs):
for o in range(n_ops):
if machines[j][o] == m:
val = interval_value(ops[j][o])
schedule.append((val.start, val.end, j, o))
schedule.sort()
for start, end, j, o in schedule:
print(f"J{j}O{o}[{start},{end}] ", end="")
print()
Extensions¶
With Setup Times¶
If there are setup times between different job types, use a transition matrix:
# Example setup time matrix (not used in the model above)
from pycsp3_scheduling import TransitionMatrix
# Define job types
job_types = [0, 1, 0] # Job 0 and 2 are type 0, Job 1 is type 1
# Setup time matrix: setup[from_type][to_type]
setup_times = TransitionMatrix([
[0, 5], # From type 0: to type 0 = 0, to type 1 = 5
[3, 0], # From type 1: to type 0 = 3, to type 1 = 0
])
print("Setup time matrix:")
print(f" Type 0 -> Type 0: {setup_times[0, 0]}")
print(f" Type 0 -> Type 1: {setup_times[0, 1]}")
print(f" Type 1 -> Type 0: {setup_times[1, 0]}")
print(f" Type 1 -> Type 1: {setup_times[1, 1]}")
# To use in the model:
# types = [job_types[j] for j in range(n_jobs) for o in range(n_ops) if machines[j][o] == m]
# seq = SequenceVar(intervals=machine_ops[m], types=types, name=f"M{m}")
# satisfy(SeqNoOverlap(seq, transition_matrix=setup_times.matrix))
Setup time matrix:
Type 0 -> Type 0: 0
Type 0 -> Type 1: 5
Type 1 -> Type 0: 3
Type 1 -> Type 1: 0
